One of my friends was asking how to show related record’s form in its parent form. For e.g. you may want to show primary contact’s form in account form, instead of forcing the user to open the contact form to see the details.

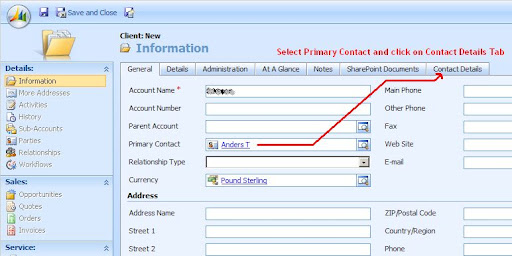

Let’s see an example. As soon as user selects a primary contact from lookup, we populate contact form in an iframe in account form.Here are the steps to achieve this functionality:

Add an iframe in account form & name it IFRAME_primarycontact
Write following code in onChange event of the Primary Contact Lookup & onLoad event of the form:

var iframe = document.getElementById('IFRAME_primarycontact');
if (document.getElementById("primarycontactid").DataValue != null && document.getElementById("primarycontactid").DataValue.length > 0) { var contactId = document.getElementById("primarycontactid").DataValue[0].id;
iframe.src = window.location.href.replace(window.location.pathname, "/<org-name>/sfa/conts/edit.aspx?id=" + contactId + "&hideNav=true");
}
else { iframe.contentWindow.document.body.innerHTML = "<i>Select Primary Contact</i>";}

Click here for preview

We are almost done! The selected contact will now be shown in the iframe. If you want to hide the left navigation pane and top tool bar in contact form, perform following steps:

Write following script in onLoad event of contact form:

queryString = location.search;if(queryString.indexOf("hideNav=true") != -1){ areaFormDiv = document.getElementById('areaForm'); mainTable = areaFormDiv.parentElement.parentElement.parentElement.parentElement; mainTable.deleteRow(0); // delete top nagivation pane mainTable.rows[0].deleteCell(0); // delete left navigation pane mainTable.rows[0].cells[0].colSpan = 2; // span the cell to the entire row}

Click here for preview

Happy Programming!

iframe, hide form toolbar, hide form navigation pane, lookup, jscript, microsoft dynamics crm 4.0 how to show child record in iframe in parent form
