Power BI - How to embed a PBIX in D365FO and add in a workspace.
Ajit
8,755
Like
Share
ReportWe have an option in D365 to embed PowerBI visuals and run through workspaces. Here I am providing steps to do the same.
1. Create a PowerBI report using power BI desktop and save the file, .pbix file will be saved. You can refer below youTube tutorial
2. Open Visual Studio in your dev box and Right click on your project - Add - New Item
3. Create a new 'Resource' and give the name of that resource.

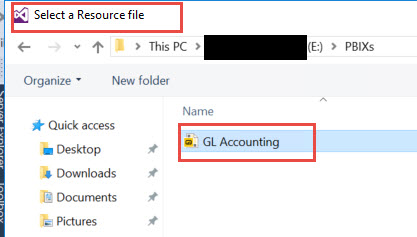

4. As soon as you hit the ok, VS will popup the file explorer to select the 'PBIX' file, select the pbix you have developed\created.
5. Hit 'ok', resource will get created in your project.

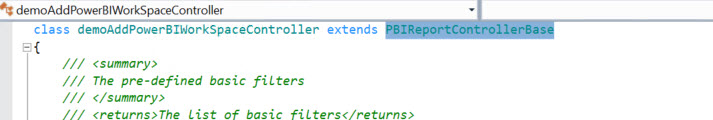

6. Create a Display Menu Item 'demoAddPowerBiDisplay' and also create a controller class 'demoAddPowerBIWorkSpaceController' and extends with 'PBIReportControllerBase'
Note - You can copy the standard controller class like - 'FinancialInsightsWorkspaceEmbeddedController'
7. Now add or modify the 'Main' method of the class and call your pbix resource -
8. Add this controller class in your menu item as an object.
9. Now create a new 'Tile' Right click on your project -> Add -> new Items -> User Interface - Tile.
10 . Once created, select your display menu item in tile properties. And give the label.
11. Add this tile to your menu.
12 - Once you click on this workspace, your pbix will get called.
Tags: #PowerBI #D365FO #Pbix #Dynamics
Comments
-
Hello Guys - I tried on tier 2 F&O environment. To get this work in tier1 (one box) VM, you would have to do some update in web.config and all. onedrive.live.com/ If you are getting failed to publish report error in tier 2 instance, below are some points you would want to verify 1. Preview features are not used in your PBIX 2. Make sure you are using 'Dynamic Query' not import mode for loading data 3. If you have renamed columns, make sure columns name are duplicate
-
