Handle Base64 and Binary File Content Types in Power Automate

Did you know that there are two types of file or image content type used in the input and output parameters? In this post, you will learn how to handle the different types of file content in the cloud flow action parameters.

When working with the input and output parameters for file content, you need to provide a value as Binary data type for most of the input parameters (e.g. Upload file or image content) and its counterpart action (e.g. Get file or image content) returns the value in Binary data type. However, some of the actions require the Base64 data type and some outputs return Base64 data type. So how do you identify what you need and when to convert which?

Understanding what type of file content to use in certain parameter is important. Sometimes, conversion of one type to another is required when the type of the output is different from the required input for the next step (e.g. get the Note attachment file and upload to SharePoint).

To identify the file content type of the input/output parameters, the Connectors Documentation is the best place to start.

All of the actions in the SharePoint connectors are consistent. Create file action requires the file content in Binary data type to upload the file and Get file content or Get file content using path returns the Binary data type. In Common Data Service (current environment) connector, Upload file or image content and Get file or image content uses the Binary data type but the rest of the parameters seems to be Base64.

Base64

The same applies to retrieving the image column which returns the Base64 value.

{ "$content-type": "image/png", "$content": "iVBORw0KG...i/DhQmCC" }

You can read more details on this topic from Olena Grischenko's blog post about Populating Word template with the image field content from Microsoft Dataverse.

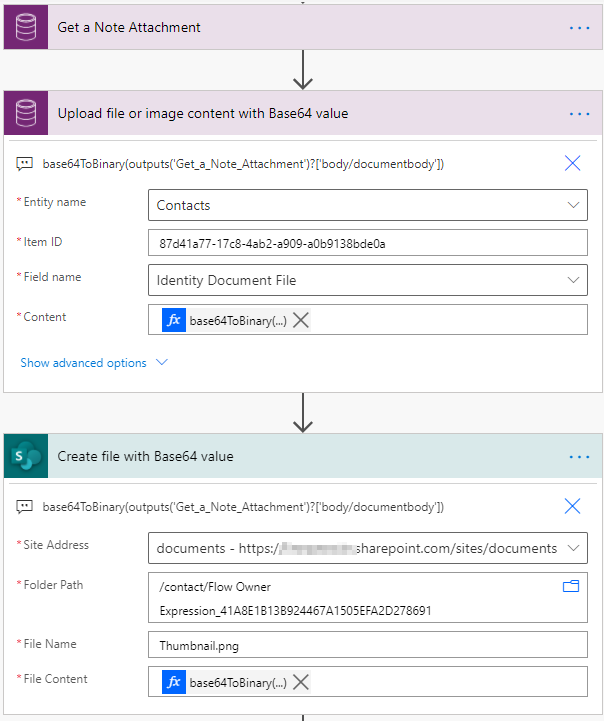

To convert from Base64 to Binary data type, there is a base64ToBinary function. However, there is no such function for converting the other way round. The trick to converting the other way around is to set the Binary value into the Compose action and use the ['$content'] property of the output. You can also directly use the ['$content'] property of the Binary output too (e.g. outputs('Get_file_or_image_content')?['body/$content'] will return Base64 value). You can find more details about Binary to Base64 conversion in the blog post .

Now let's see the conversions in action.

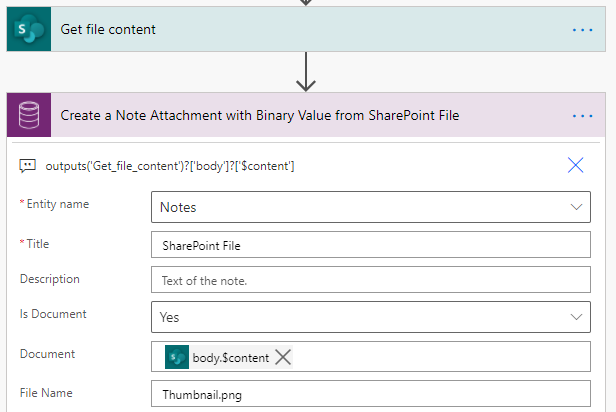

Create Note Attachment from SharePoint File

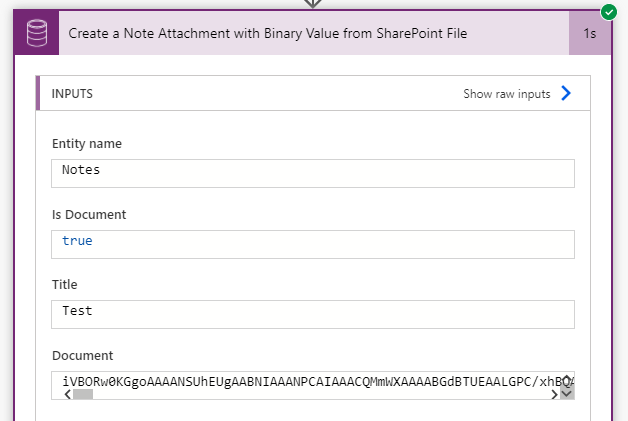

Get file content action will return the SharePoint file content in Binary but creating a Note attachment requires Base64 value. Using the ['$content'] property of the output with the following expression will populate with Base64 value to the Document column.

outputs('Get_file_content')?['body']?['$content']

There are two types of file content (Binary and Base64) used in the input and output parameters and it is important to use the correct type based on the required parameter. To convert from Base64 to Binary, base64ToBinary function can be used and ['$content'] property of the Binary output can be used when needing a Base64 value.
